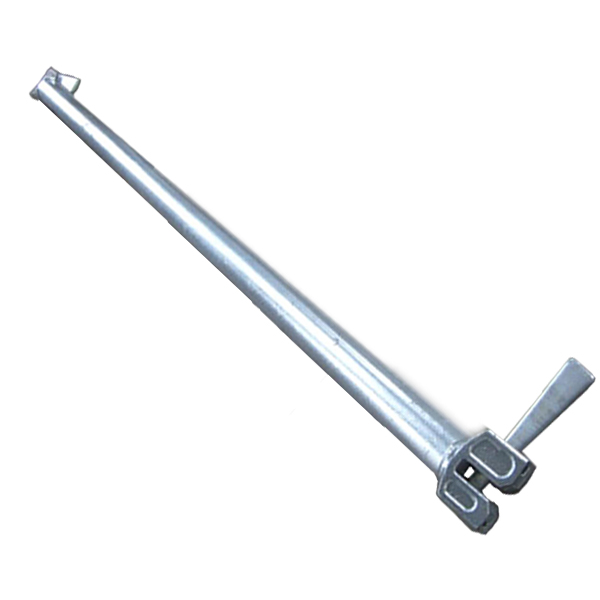

Ringlock Scaffolding Horizontals Ledger Connector Parts

Home/Ringlock Scaffolding System/Ringlock Scaffolding Horizontals Ledger Connector Parts

Ringlock Scaffolding Horizontals Ledger Connector Parts

  • Certified as international standard EN12810 & AS/NZS 1576.
  • Our Ringlock Scaffolding Horizontals for sale are made of high tensile steel material Q355 or Q235. both can be customized.
  • Ringlock horizontal ledger size can be produced with a Diameter 48.3mm steel tube and 3.0 or 3.2mm thickness, length 732mm, 1088mm, 1400mm, 1572mm, 2072mm, 2572mm, 3072mm
  • Two ledger plug ends are welded at both tubes ends. Ledger ends can be designed as required.
  • Hot-dip galvanized & Electro-galvanized, also Painted system scaffolding surface finishing are available.
  • As  China’s best scaffolding manufacturer, DURA can produce several standards of Ringlock Horizontal connectors:  European Scaffolding Standard (EN12810); Australia Scaffolding Standard (AS/1576); Other Scaffolding Standards requested by clients.
Inquiry Now



Description

  1. The Ringlock Scaffolding horizontals Ledger is a component of the horizontal connection of the Ringlock scaffolding system.
  2. It is made of a steel pipe welded with two ledger plugs at both ends with pins inserted into the Standard round rosette to set up the basics of the Ringlock scaffolding system.
  3. The ledger plugs are produced by cast-steel using wax mold.
  4. According to the SGS test requirement, DURA’s Ringlock scaffolding horizontal connectors for sale would be EN 12810 standard.
  5. Ledger primarily functions on the horizontal support of the Ringlock scaffolding, and it usually connects to the standard, bay braces, staircase, ladder, and steel plank.
  6. When assembling the horizontal ledgers, just insert the plugs at both ends of the ledger into the corresponding taper holes on the vertical rod, and then tap it tightly.
  7. For the stable concerns, since interlocking and gravity, even if the bolt is not tightened, the ledger plugs cannot be removed. Therefore, due to the many functions of the ledger, it has become one of the core components of the Ringlock scaffolding system.
  8. As the leading and professional scaffolding manufacturer in China, we also can design and verify your scaffolding project to offer solutions. So just inquiry us below now!

    DURA Ringlock Scaffolding Horizontals Ledger Specifications

    Item No.Product NameMaterialSizeWeight(kg)Surface Treatment
    DA-R1001BRing Lock Ledger
    48.3X3.25mm
    Q235390mm2.23Hot-dip galvanized/Electro-galvanized
    732mm3.42
    1088mm4.68
    1400mm5.67
    1572mm6.41
    2072mm8.2
    2572mm9.9
    3072mm11.71

    Product Inquiry Form

    Please double check your “Email Address” field

original black welded ringlock ledgers



Texture of material

————————————-

Select high-quality raw materials to ensure product quality.

Inquiry Now

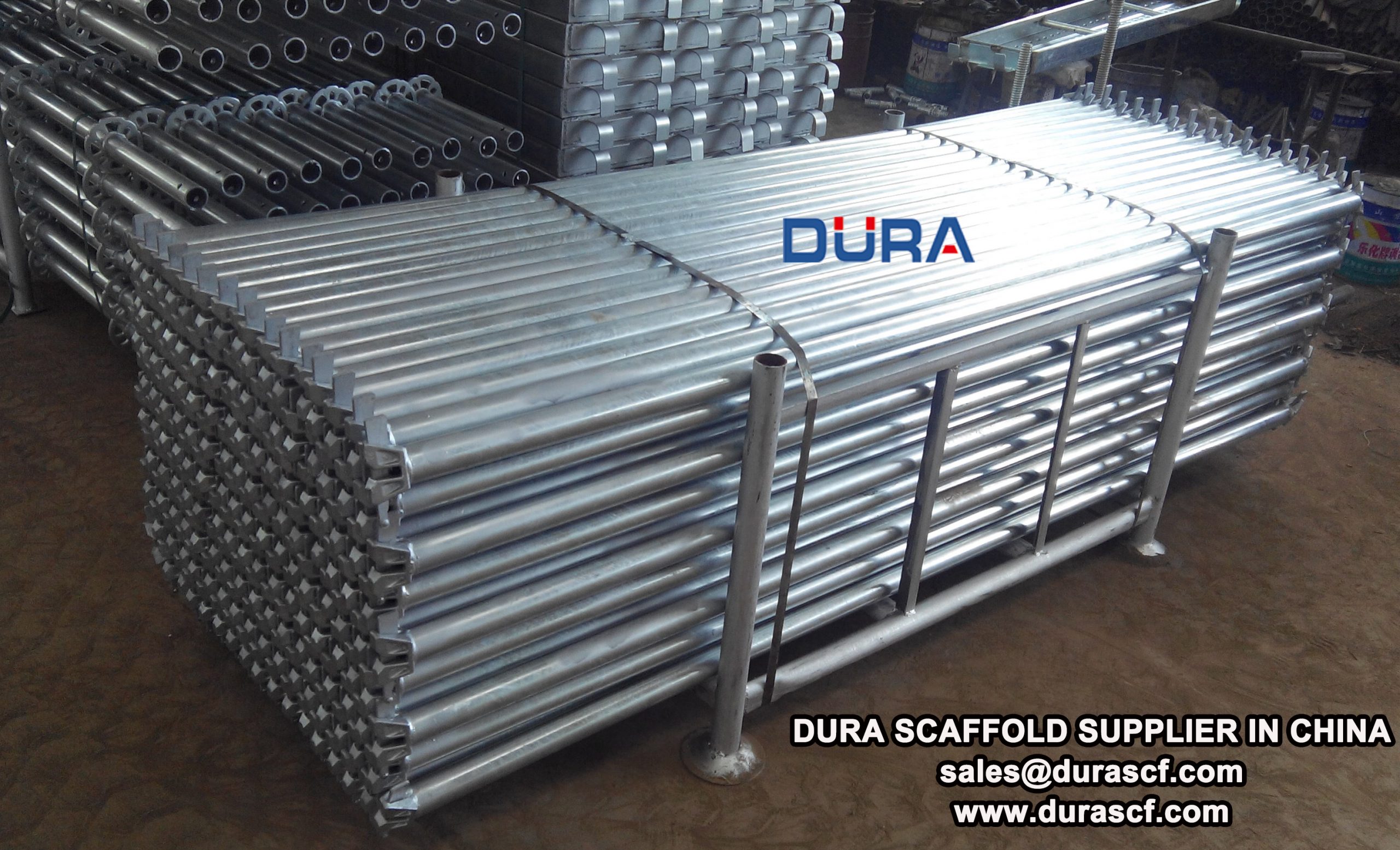

HDG Ringlock horizontals



Scientific structure

————————————-

Scientific structure, more durable and stable, better use.

Inquiry Now









marked ledger ends





Advanced technology

————————————-

Advanced technology, fast Auto-welding production, guarantee delivery speed.

Inquiry Now







horizontal connectors package



After-sale guarantee

————————————-

Professional after-sales team, one-to-one service, more efficient and assured.

Inquiry Now

Feature

  • Material: Q235 carbon steel tube
  • Tube Size:48.3X3.25 or 3.0mm.
  • Length: 732mm, 1088mm, 1400mm, 1572mm, 2072mm, 2572mm, 3072mm
  • Surface Treatment: Hot-dip Galvanized or Electro-glacanized.
